SUPRA COMBICON SPADE

Supra CombiCon Series - A versatile, robust series of contacts

The Supra CombiCon allows for changing contacts from BFA/banana to Fork in a blink of an eye. And back again for that matter, providing for exceptional freedom and flexibility for any new demand. Electrically, the Supra CombiCon matches any of our cables and the design specification was clear-cut, it must not be a bottleneck for our Supra Sword speaker cable. Rest assure, there are no any other contact, making a better job for Supra cables, even though competing contacts often are much more expensive.

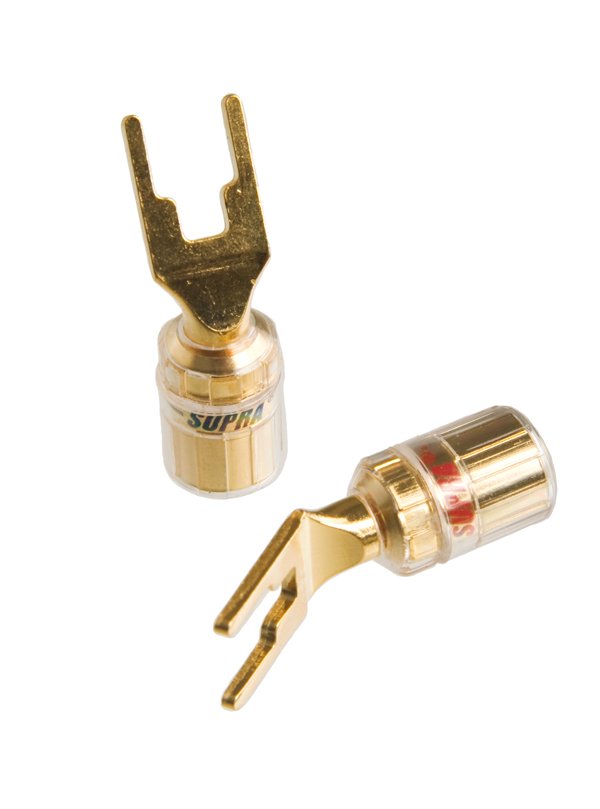

This CombiCon (combination connector) comprises two parts: a connector Body with a M6 thread that attach to the cable in two ways; straight or 90°, and a contact part with M6 thread that fits the connector body. The contact part may be either the Fork, the optional BFA/Banana pin or a combination of both depending on desired access angle to the speaker terminal.

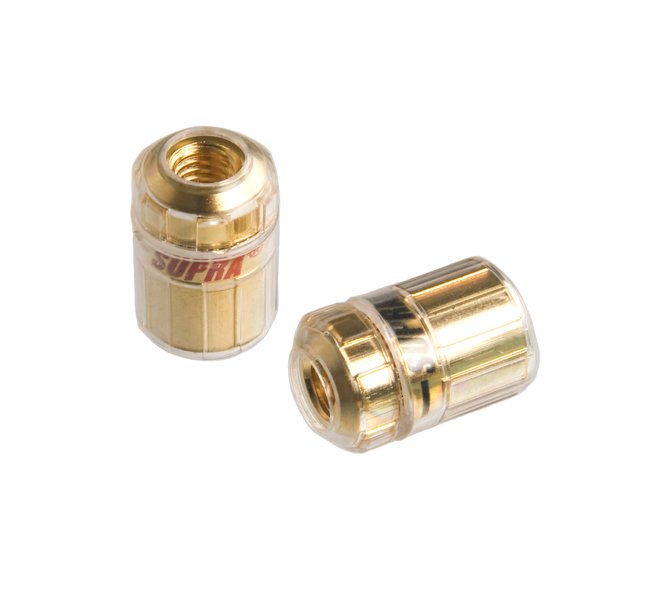

The Connector Body M6
The connector Body attach to the cable either straight or in 90° angle. Click the pictures above for better views. A speaker cable with fork connectors may also attach to the connector Body, often to achieve a different access angle of the connection to the speaker terminal. Printing in red and black, respectively, for polarity identification. The connector Body houses CombiCon optional BFA/banana or Fork in the M6 thread.

The Contact Part M6

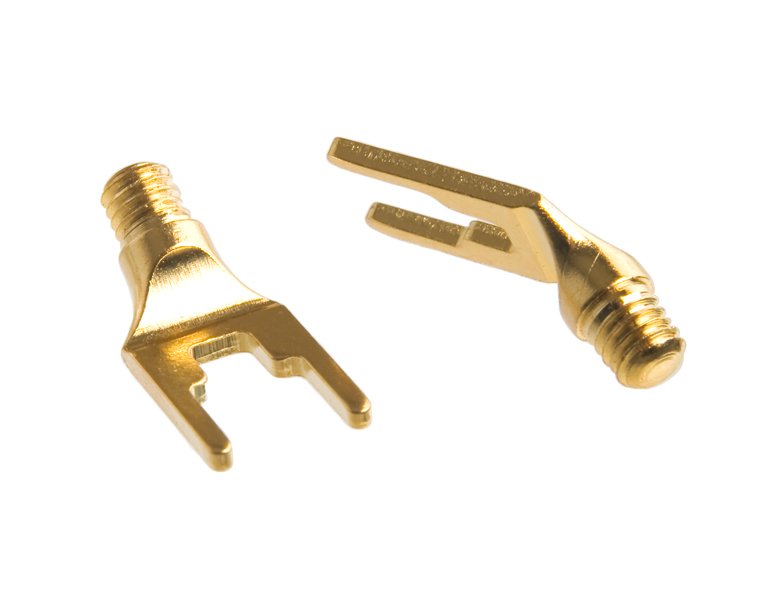

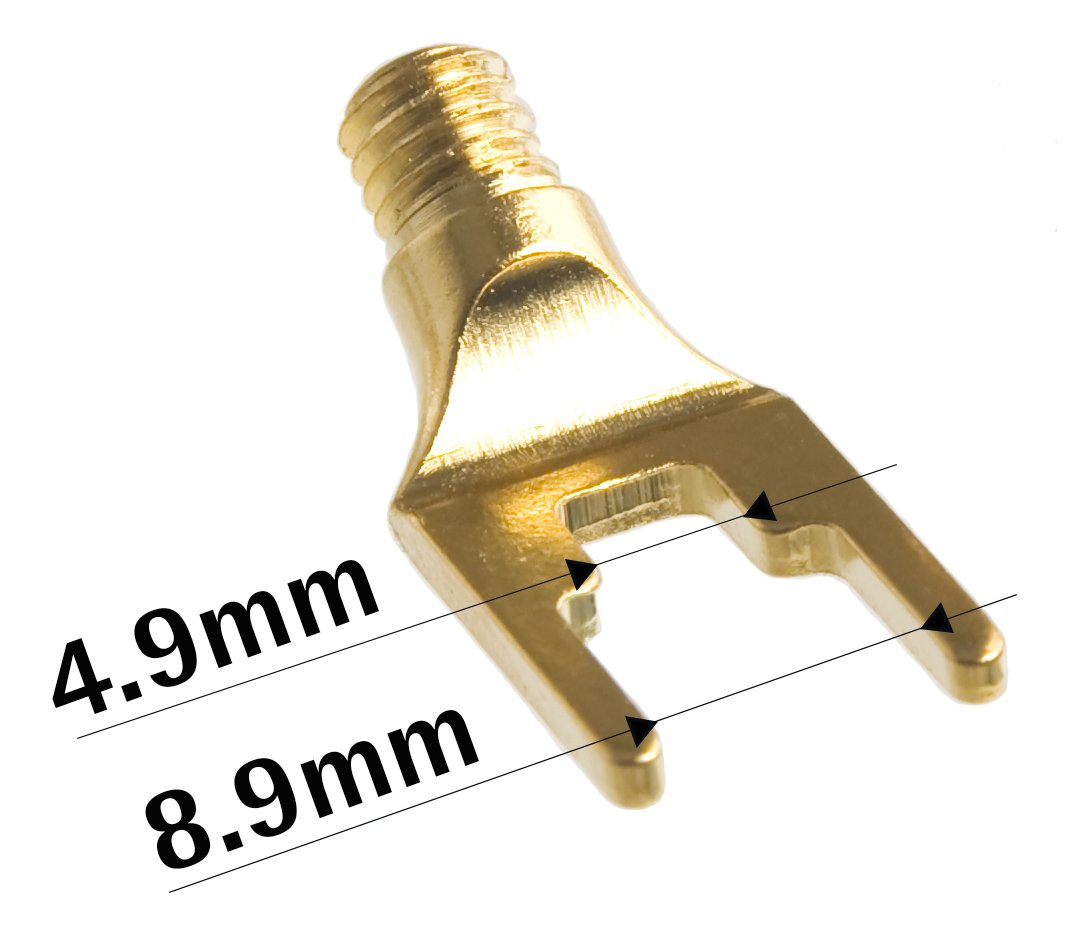

The Fork is angled for easier mounting in tight spaces, offers a two-step internal width to fit the vast majority of speaker terminals and displays a really good connection provided that the Fork is tightened properly in the connector Body and to the speaker terminal.

The optional BFA/Banana pin is reinforced and improved, now equipped with a key grip for a small spanner or a fixed 5 mm wrench and finally a larger M6 thread. The optional BFA/banana pin fits into CombiCon body M6, CombiCon Crimp body M6 and BFA amplifier terminals.

Mechanical Specifications

Quantity per package                           2 pairs
Contact                                                     Fork (Spade)
Contakt material                                    24K goldplated Copper
Contact fixing                                         Speaker terminal clamping force and M6 thread fits the Connector Body M6
Cable connection                                  Threaded clamping force in Connector Body, straight or 90°
Maximal cable crossection area         6.0 / 9 mm2 / AWG
External size (Ø x l)                                13 x 20.5 mm
Polarity identification                           Red / Black
